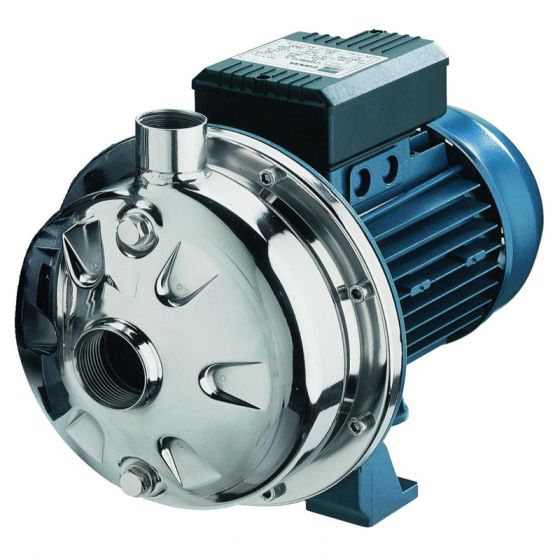

Ebara CDX 200/25 (Three Phase)

Excl. Tax £694.00 Incl. Tax £832.80
Direct from Supplier - Normally 2-3 Working Days
  • Part No: 1635250004I
  • Old SKU: 1635250004
  • CDX/A 200/25
  • Weight: 16.8kg
  • CDX: Model
  • 200: Hydraulic code
  • 25: Power (HP)
  • Three Phase (230/400V)

For high temperature (over 60°C) or aggressive mediums (wort) please ensure you add the correct mech seal

The CDX 200/25 from Ebara is a single impeller centrifugal electric pump with hydraulic parts in AISI 304 stainless steel and is suitable for domestic pressure boosting, brewery applications (when fitted with correct seal) treating water, cooling towers and moving clean water in general.

Please Note: Use in breweries invalidates warranty even though they are often used in these applications.

Electric Data

  • Three Phase - 230/400V
  • Power - 2.5HP, 1.85kW
  • Current: 8.2/4.7A

Technical Details

  • Solid hydraulic structure
  • Maximum working pressure: 8 bar
  • Maximum temperature of the liquid: -10°C to +90°C
  • Self-ventilated 2 pole asynchronous motor
  • Class of insulation: F
  • IP55 Protection rating
  • 230/400V ±10%, 50Hz
  • Protection under user's responsibility for the three phase version
  • G1½  suction connection
  • G1 discharge connection


  • Pump body, impeller, nozzle and seal housing disc in AISI 304
  • Shaft in AISI 303
  • Support and motor casing in aluminium
  • Mechanical sealing in:
    - Ceramic/Carbon/NBR (standard)
    - Ceramic/Carbon/FPM (H version )
    - SiC/SiC/FPM (HS version)
More Information
IP RatingIP55
