Lowara e-HM..P 3HM02P03T5RVBE

Excl. Tax £253.00 Incl. Tax £303.60
In stock Direct from Supplier - Normally 2-3 Working Days
SKU
104600130
  • e-HM..P : 3HM02P03T5RVBE
  • Family code: 3P
  • Part no: 104600130
  • 0.3kW
  • Weight: 6kg

See below for technical details

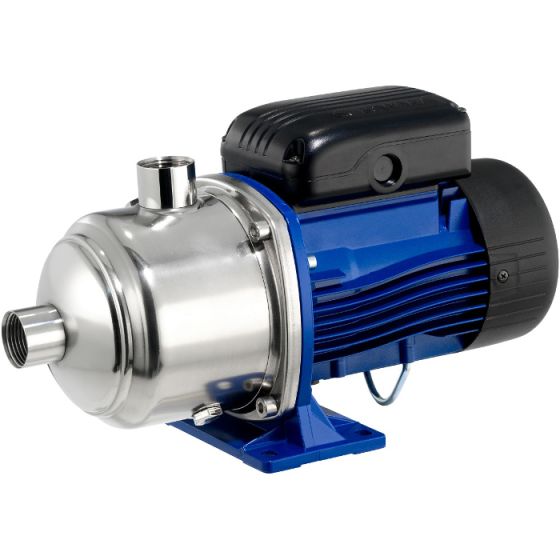

The e-HM..P 3HM02P03T5RVBE is a non-self-priming, end-suction horizontal multistage, high pressure centrifugal pump, with axial threaded inlet and radial threaded outlet from Lowara. The pumps are close-coupled design and are equipped with non-standard Lowara motors. The e-HM™ is equipped with mechanical seal.



The e-HM™ are highly modular pumps that are fitted with an innovative hydraulic design that secures high efficiency performances and an increased Mean Time Between Failure.



The e-HM™ series could be installed both in single private own house and in small/medium residential buildings. The e-HM™ series will be as well your preferred choice for water supply and pressure boosting in small block offices and shops. The e-HM™ series could be finally installed as well for small/medium irrigation installation.



Specifications

  • Max efficiency flow: 3.0m3/h
  • Flow range: 1.2÷4.2m3/h
  • Max. Head: 72.7m
  • Motor Power: 0.30÷1.1kW
  • Max η of Pump: 46%
Pump type, size and materials
  • 3 : Flow rate in m3/h
  • HM : Horizontal multistage
  • 02 : number of impellers
  • P : Stainless steel (AISI 304) with Noryl™ impellers
Motor Data
  • 03 : Rated motor power (kW x 10)
  • T : Three phase
  • 5R : 1x220-240/380-415 V
Mechanical Seal
  • V : Aluminium oxide (ceramic) rotating part
  • B : Carbon resin impregnated
  • E : EPDM elastomer
