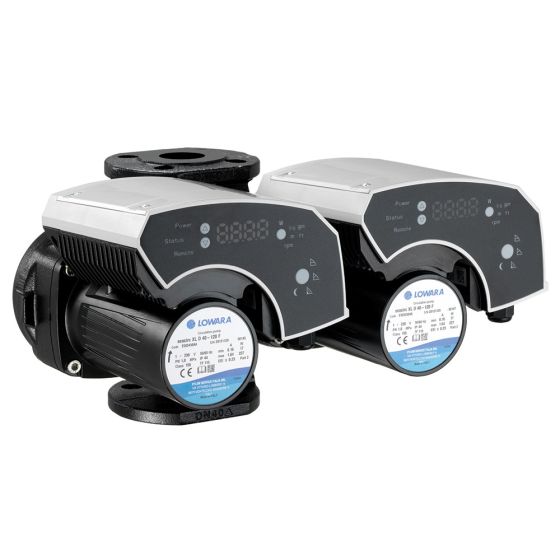

Lowara Ecocirc XLplus D 65-180 F

Excl. Tax £2,244.32 Incl. Tax £2,693.18
In stock Direct from Supplier - Normally 2-3 Working Days
SKU
E501320AA
  • Part No: E501320AA
  • Family Code: 1P
  • Single Phase: 1 x 230V
  • Length: 340mm
  • Port Size: DN65 / Flanged
  • The ecocirc XLplus communicates with BMS systems via Modbus RTU and BACnet.

The Ecocirc XLplus D 65-180 F circulator features a variable speed drive and is suitable for water circulation in HVAC systems and communicates with BMS systems via Modbus RTU and BACnet


Pump Data

  • Port to Port: 340mm
  • Elec. Connection: Terminals
  • Specific EEI: <=0,23
  • Nominal Pressure: PN6/10
  • Connection: DN65 / Flanged

Electrical Data

  • Rated Voltage: 230 V
  • Frequency: 50Hz
  • Protection class: IP44
  • Insulation class: F
  • Digital input Contact load: 5V, 10 mA
  • Digital output Vmax < 250 VAC / Imax < 2 A
  • Analog Input: 0-10 V / 4-20 mA
  • Leakage Current: < 3.5 mA
  • Communication: Modbus RTU & BACnet MS/TP
  • Sound Pressure Level: <= 52dB(A)
  • Rated Current: 6.2A

Materials

  • Bush Bearing: Carbon, resin impregnated
  • Thrust bearing Aluminum oxide
  • Bearing plate: Stainless steel
  • Motor Housing: Aluminium
  • O-Rings: EDPM
  • Pump Housing: Cast Iron
  • Impeller: PPS
  • Wear ring: Stainless steel
  • Neck Ring: Stainless steel
  • Rotor Can: Stainless steel
  • Shaft: Stainless Steel
  • Control box: Polycarbonate
